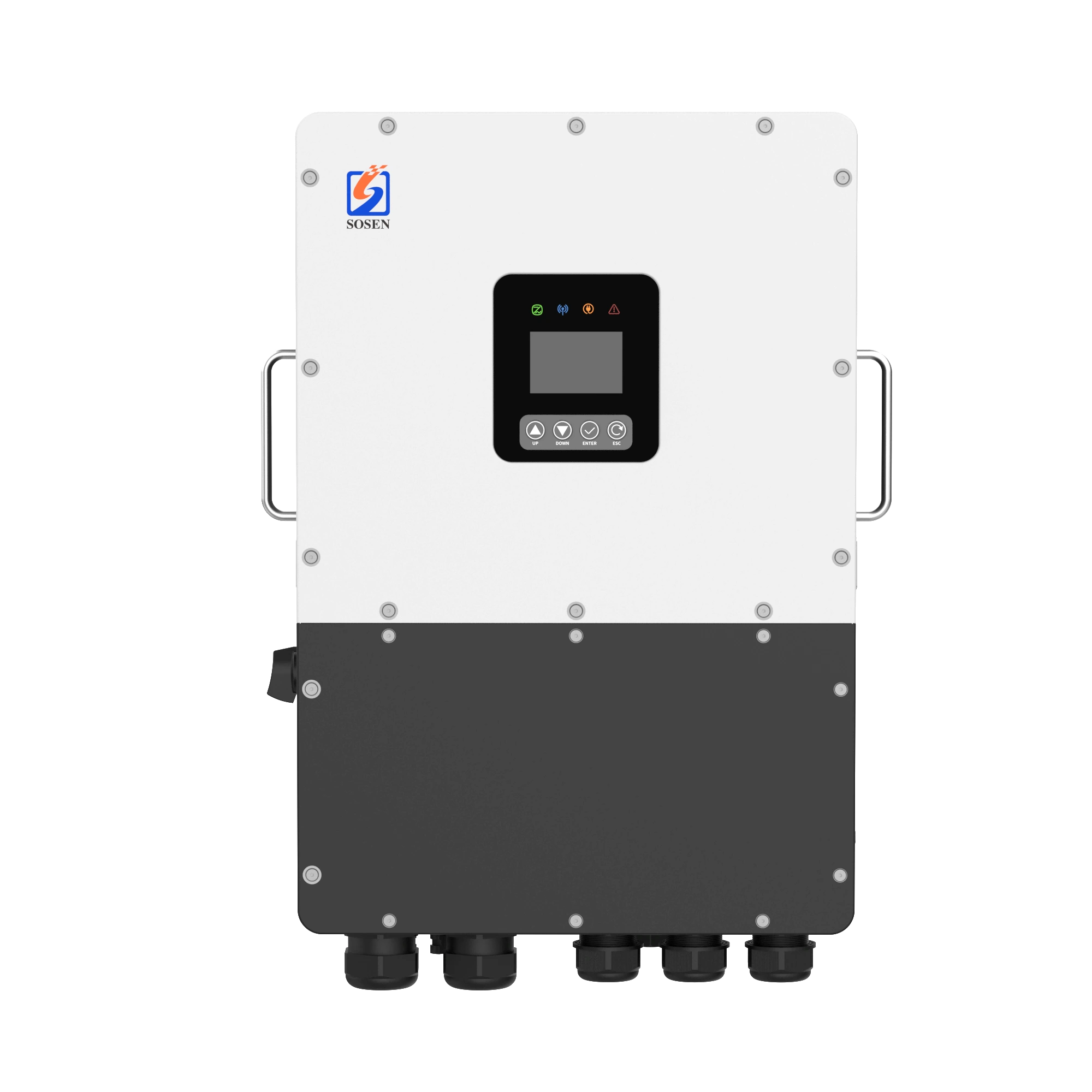

front view of SOSEN 8-24KW three phase hybrid inverter, supported LV battery

bottom view of SOSEN 8-24KW three phase hybrid solar inverter, featured 415A charging and discharging

right view of SOSEN 8-24KW three phase hybrid solar inverter, featured 150% unbalanced output

8kW~24kW Three-Phase Low Voltage Hybrid Inverter 4

left view of SOSEN 8-24KW three phase hybrid solar inverter, up to 8 units in parallel

8kW~24kW Three-Phase Low Voltage Hybrid Inverter

The SSE-HL8~24K-P3EU-S series is a leading three-phase low-voltage hybrid inverter designed for residential and small commercial applications, supporting 8~24kW systems. It features up to 415A charge/discharge current and three battery inputs for versatile energy storage solutions. Built with advanced SiC technology and a robust full aluminum lP66-rated enclosure, it delivers high efficiency, reliability, and durability.

Max. 20A PV input current for high-current PV modules.
Max. 275A charge/discharge current supports three battery inputs.
2x load surge for 10s, 150% three-phase unbalanced output.
Full-load operation, 45 °C without derating.
SiC + Full Aluminum + IP66, high efficiency, and built-in SPD.
Up to 8 units in parallel, supports AC coupling for retrofit.

Contact Us

Inquiry

download

SSE-HL8~24K-P3EU-S.pdf

Write a Review

Safety, Reliability, Compatibility, Efficiency

SSE-HL8~24K-P3EU-S

8kW~24kW | Three Phase | Low Voltage | IP66

The 8~24kW low-voltage three-phase energy storage inverter is designed for small commercial sites, large homes, rural microgrids, and solar-plus-storage systems. It delivers stable three-phase power for pumps, EV chargers, HVAC, and other essential loads, helping users reduce energy costs, improve power reliability, and maintain continuous operation during outages.

Right side view of 8-24KW hybrid inverter shows LCD display and Aluminum enclosure

System Diagram

This diagram shows the 8kW~24kW inverter system: DC power from the battery, PV array, and diesel generator goes through safety fuses and relays, a DC isolation switch, and capacitors. The inverter then converts DC to AC, which is filtered and stabilized, before outputting clean AC power to the grid and loads.

Related Parameters

TECHNICAL SPECIFICATION
Model	SSE-HL8K-P3EU-S	SSE-HL10K-P3EU-S	SSE-HL12K-P3EU-S	SSE-HL15K-P3EU-S	SSE-HL18K-P3EU-S	SSE-HL20K-P3EU-S	SSE-HL24K-P3EU-S
INVERTER INPUT / OUTPUT (GRID)
Rated Power	8 kW / 8 kW	10 kW / 10 kW	12 kW / 12 kW	15 kW / 15 kW	18 kW / 18 kW	20 kW / 20 kW	24 kW / 24 kW
Rated Voltage	380 / 400 V a.c., 3W+N+PE
Rated Frequency	50 Hz / 60 Hz
Power Factor Range	0.8 leading ~ 0.8 lagging
Switch Time	＜20
Current (Maximum / Continuous)	24 / 12 A a.c.	29 / 15 A a.c.	35 / 17 A a.c.	43 / 22 A a.c.	52 / 26 A a.c.	58 / 29 A a.c.	60 / 35 A a.c.
Max. Output Overcurrent Protection	400 V a.c. / 100 A a.c.
BATTERY
Battery Type	Lithium / Lead-acid
Battery Voltage Range	40~60 V d.c.
Rated Battery Voltage	51.2 V d.c.				48 V d.c.
Max. Charge Current	180 A d.c.	220 A d.c.	250 A d.c.	315 A d.c.	375 A d.c.	390 A d.c.	415 A d.c.
Max. Discharge Current	180 A d.c.	220 A d.c.	250 A d.c.	315 A d.c.	375 A d.c.	390 A d.c.	415 A d.c.
PV INPUT
No. of MPPT Tracker / Strings	2 / 2+2+2
Max. PV Array Power	16 kW	20 kW	24 kW	30 kW	36 kW	40 kW	48 kW
Max. DC Voltage	1000 V d.c.
MPPT Voltage Range	150~850 V d.c.
Start-up Voltage	180 V d.c.
Max. Input Current	4*20 A d.c.
Isc PV (Absolute Maximum)	4*30 A d.c.
AC OUTPUT (EPS)
EPS Rated Output Voltage	380 / 400 V a.c., 3W+N+PE
EPS Rated Output Frequency	50 Hz / 60 Hz
EPS Rated Output Active Power	8 kW	10 kW	12 kW	15 kW	18 kW	20 kW	24 kW
EPS Rated Output Apparent Power	8 kVA	10 kVA	12 kVA	15 kVA	18 kVA	20 kVA	24 kVA
EPS Rated Output Current	12 A a.c.	15 A a.c.	17 A a.c.	22 A a.c.	26 A a.c.	29 A a.c.	35 A a.c.
Overload Capacity (Off Grid)	110% 600s / 120% 300s / 150% 60s / 200% 10s
EFFICIENCY
MPPT Efficiency	99.9%
Euro-efficiency	97.00%			97.20%
Max. Efficiency	97.50%			98.00%
PROTECTION & FEATURE
Insulation Monitoring	Yes
Residual Current Monitoring	Yes
Parallel Function	Yes
Protection Degree	IP66
Certifications	IEC 62109-1/2, IEC 62477-1, IEC 61000-6-1, IEC 61000-6-3, EN 50549-1&-10, NRS 097-2-1, IEC 61727, IEC 61683, IEC 62116
Other Protection	Output over voltage, Output over current, Short circuit, Surge, Temperature, Anti-lslanding
GENERAL PARAMETER
Storage Temperature	-25℃ ~ +60℃
Operating Temperature	-25℃ ~ +60℃ (Linely derating to 60% when exceed +45℃~+60℃
Humidity	0~100% (Non-condensing)
Altitude	4000 m (> 2000 m Derating)
Noise	<65 dB
Machine Dimension(WHD)	448660265 mm
Machine Weight / N.W.	40 kg				45 kg
DISPLAY & COMMUNICATION
Display	LCD + APP
Interface	RS485 / WiFi / CAN / DRM (Optional: Bluetooth / LAN / Meter)
The AC voltage and frequency range can differ according to the grid standards of each country. Please note that all specifications are subject to change without prior notice.
