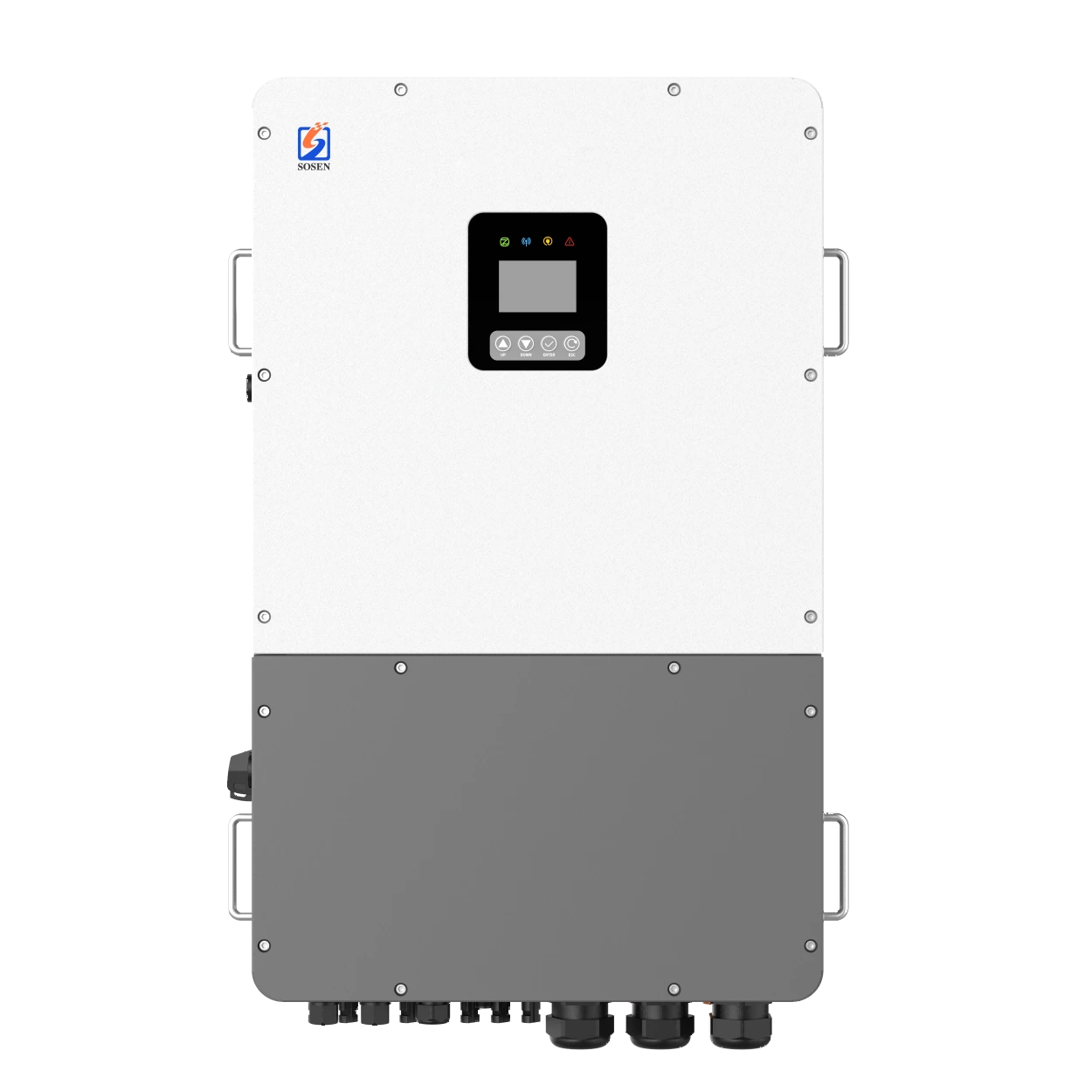

29.9kW~60kW Three-Phase High Voltage Hybrid Inverter 1

29.9kW~60kW Three-Phase High Voltage Hybrid Inverter 2

29.9kW~60kW Three-Phase High Voltage Hybrid Inverter 3

29.9kW~60kW Three-Phase High Voltage Hybrid Inverter 4

29.9kW~60kW Three-Phase High Voltage Hybrid Inverter 5

29.9kW~60kW Three-Phase High Voltage Hybrid Inverter

SSE-HH29.9K~60K-P3EU three-phase high-voltage hybrid inverter offers high efficiency for commercial and industrial energy storage. Featuring SiC MOSFET technology, it provides reduced size and weight. It supports a battery voltage range of 135V-850V and dual battery interfaces for flexible configurations. With 4 MPPT strings, wide MPPT voltage range, fast switching time (<10ms), and IP66 protection, it ensures optimal performance. 5-Year warranty included.

• Advanced SiC OSFET technology for higher efficiency and lightweight design.

• Fast switch time (<10ms) ensures seamless power.

• Wide MPPT voltage range: 150V-850V d.c max.1000V .

• Dual battery interfaces, supports 100A×2 for independent battery packs or 200A for parallel connections, providing flexibility.

• Supports black start, off-grid and economy mode for versatile power solutions.

• AC coupled to retrofit existing solar system.

Contact Us

Inquiry

Write a Review

Safety, Reliability, Compatibility, Efficiency

SSE-HH29.9K~60K-P3EU

29.9K~60KW | Three Phase | High Voltage | IP66

The SSE-HH29.9K~60K-P3EU hybrid inverter integrates local and remote EMS functions to support multiple power grid dispatch modes. The battery voltage ranges from 135V to 850V. It also supports up to 8 parallel machines, and supports SOC balancing function under parallel machines. It supports single-phase 100% unbalanced load operation under off-grid conditions, adapting to various load scenarios.

29-9kw-60kw-three-phase-high-voltage-hybrid-inverter

Enhanced Accessibility & Versatility

Protect Your Power Supply

Built-in black start functionality ensures safe and high-efficiency backup power for your site

Commercial & Industrial

Versatile and adaptable for various applications, it can be installed indoors or in a customized container

100% Unbalanced Output

Supports 100% unbalanced load operation, even under off-grid conditions

29.9kW~60kW Three-Phase High Voltage Hybrid Inverter 10

Smart Management System

Enables peak load shifting and supports parallel operation from 4 to 12 units

Application Scenario

Industry Power

Public Grid

Car Charging Station

Related Parameters

TECHNICAL SPECIFICATION
Model	SSE-HH29.9K-P3EU /SSE-HH29.9K-P3EU-S	SSE-HH30K-P3EU /SSE-HH30K-P3EU-S	SSE-HH40K-P3EU /SSE-HH40K-P3EU-S	SSE-HH50K-P3EU /SSE-HH50K-P3EU-S	SSE-HH60K-P3EU /SSE-HH60K-P3EU-S
INVERTER INPUT/OUTPUT (GRID)
Rated Power	29.9 kW	30 kW	40 kW	50 kW	60 kW
Rated Voltage	380 / 400 V a.c., 3W+N+PE
Rated Frequency	50 Hz / 60 Hz
Power Factor Range	0.8 leading~ 0.8 lagging
Max. Continuous Current (Input / Output)	90.8 / 45.4 A a. c.	91.2 / 45.6 A a.c.	121.6 / 60.8 A a. c.	152 / 76 A a. c.	182.4 / 91.2 A a. c.
Max. Output Overcurrent Protection	68.1 / 64.7 A a. c.	68.4 / 65 A a. c.	91.2 / 86.6 A a. c.	114 / 108.3 A a. c.	136.7 / 129.9 A a. c.
BATTERY
Battery Type	Lithium / Lead-acid
Battery Voltage Range	150 ~ 800 V d.c.
Rated Battery Voltage	150 V d. c.	150 V d. c.	200 V d. c.	250 V d. c.	300 V d. c.
Max. Charge Current	2*100 A d. c.
Max. Discharge Current	2*100 A d. c
Reverse Connect Protection	Yes
PV INPUT
No. of MPPT Tracker/Strings	4 / 2+2+2+2
Max. PV Input Power	59.8 kW	60 kW	80 kW	100 kW	100 kW
Max. DC Voltage	1000 V d. c.
MPPT Voltage Range	150 ~ 850 V d. c.
Start-up Voltage	200 V d. c.
Max. Input Current	8*20 A d. c.
Isc PV (Absolute Maximum)	8*30 A d. c.
AC OUTPUT (EPS)
EPS Rated Output Voltage	380 / 400 V a.c., 3W+N+PE
EPS Rated Output Frequency	50 Hz / 60 Hz
EPS Rated Output Active Power	29.9 kW	30 kW	40 kW	50 kW	60 kW
EPS Rated Output Apparent Power	29.9 kVA	30 kVA	40 kVA	50 kVA	60 kVA
EPS Rated Output Current	45.5 / 43.2 A a. c.	45.6 / 43.3 A a. c.	60.8 / 57.7 A a. c.	76 / 72.2 A a. c.	91.2 / 86.6 A a. c.
Overload Capacity (Off Grid)	110% 30s / 120% 10s / 150% 0.2s
EFFICIENCY
MPPT Efficiency	99.9%
Euro-efficiency	97.5%
Max. Efficiency	98.5%
PROTECTION & FEATURE
Insulation Monitoring	Yes
Residual Current Monitoring	Yes
Parallel Function	Yes, up to 8 pcs
Protection Degree	IP66
Certifications	IEC 62109-1/2, IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4, EN50549-1&-10, NRS 097-2-1 etc.
Other Protection	Ground Fault Current Monitoring, Earth Fault Detection, Residual Current (RCD) Detection, etc.
GENERAL PARAMETER
Storage Temperature	-25℃ ~ +60℃
Operating Temperature	-25℃ ~ +60℃ ( Linely derating to 60% when exceed +45℃~ +60℃)
Humidity	0% ~ 100% (Non-condensing)
Operating Altitude	4,000 m
Noise	<65 dB
Dimensions (WHD)	544880278 mm
Machine Weight / N.W.	88 kg
DISPLAY & COMMUNICATION
Display	LED+APP / LCD (-S Version)
Interface	RS485 / WiFi / CAN / DRM (Optional: Bluetooth / LAN / Meter)
The AC voltage and frequency range can differ according to the grid standards of each country. Please note that all specifications are subject to change without prior notice.
