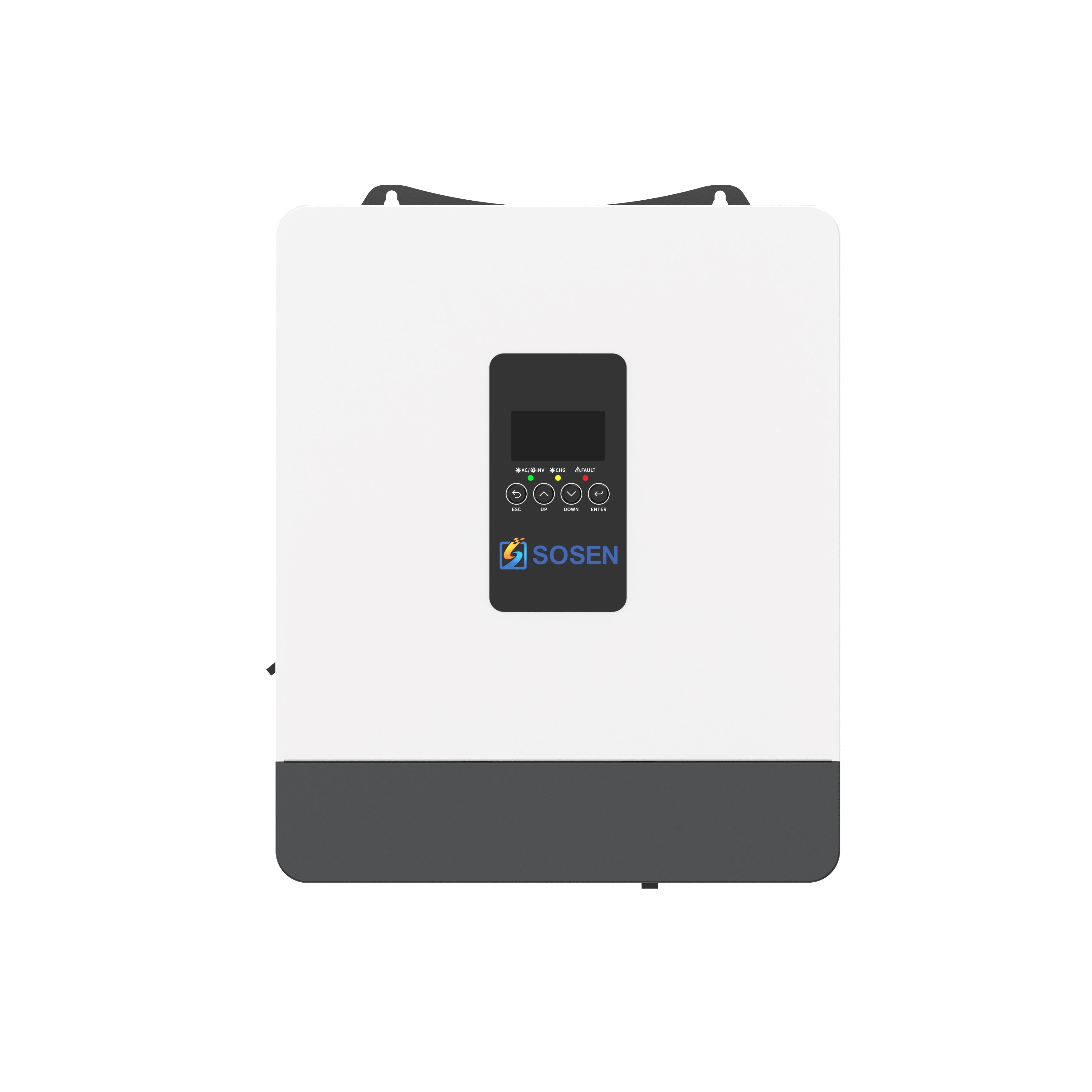

4-5kW Off-grid Single Phase Hybrid Inverter (US)
The SSA-HL4~5K-P1US is an off-grid hybrid inverter that supports 24V and 48V batteries, specifically designed for residential applications across the Americas. With up to 500V PV input and a built-in MPPT controller, it delivers high solar conversion efficiency. The inverter supports 200% (10s) overload capacity and is compatible with solar, utility, diesel generator, and battery sources.
- Max. 500V PV Input for Longer and Flexible Strings
- Operates with or without Battery for Flexible System
- Supports PV, Battery, Grid, and Diesel Generator Input
- Built-in MPPT Controller for Efficient Solar Charging
- Optional WiFi for Real-time Remote Monitoring
- 200% (10s) overload capacity handles heavy startup loads
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Safety, Reliability, Cost-effective, Efficiency
SSA-HL4~5K-P1US
4kW/5kW | Single Phase | Low Voltage | IP20
Maximize your energy with 92% inverter efficiency & stable 110V/120V AC output – power off-grid reliably. Multiple working modes (Utility/PV/SBU) offer flexible energy management for various off-grid scenarios. Support PV, Battery, Utility, and Diesel Generator input. Optional WiFi enables remote monitoring and control via mobile app or web portal.
Power Where You Need It Most
From remote homes and solar energy to emergency backup and mobile adventures — one reliable
110V/120V AC hybrid inverter solution for every off-grid need.
Remote Area
Supports pair with 24V or 48V battery to off-grid homes in remote areas, lighting up houses and powering essentials like refrigerators and TVs.
Solar Energy
Perfect for home solar systems. Convert sunlight into usable 110V/120V AC electricity in places like California, slashing your energy bills.
Emergency Backup
Ensure critical power for hospitals and command centers during outages, keeping lifesaving and communication equipment running.
Mobile Freedom
Power your RV adventures. Run appliances like microwaves and air conditioners, turning your vehicle into a comfortable home on wheels.
Related Parameters
|
TECHNICAL SPECIFICATION
|
||
|
Model
|
SSA-HL4K-P1US
|
SSA-HL5K-P1US
|
|
AC INPUT
|
||
| Rated Voltage |
110 / 120 V a.c., L+N+PE
|
|
|
Rated Frequency
|
50 Hz / 60 Hz
|
|
|
Current (Maximum Continuous)
|
40 A a.c. | 50 A a.c. |
|
INVERTER OUTPUT
|
||
|
Rated Power
|
4 kW | 5 kW |
|
Rated Voltage
|
100 / 110 / 120 / 127 V a.c., L+N+PE
|
100 / 110 / 120 V a.c., L+N+PE
|
|
Power Factor
|
1 | |
|
Wave Form
|
Pure Sine Wave
|
|
|
Switch Time
|
<10 ms (Typical Value)
|
10 ms (APP/UPS mode) / 20 ms (GEN mode)
|
|
Inverter Efficiency (Peak)
|
92% | |
|
Current (Maximum Continuous)
|
33.3 A a.c. | 41.7 A a.c. |
|
Maximum Output Overcurrent Protection
|
1 min @102% -120% load, 10s @120% - 200% load | |
|
BATTERY
|
||
|
Battery Type
|
Lithium / Lead-acid
|
|
|
Rated Battery Voltage
|
24 V d.c. | 48 V d.c. |
|
Battery Voltage Range
|
21~30.2 V d.c. | 42~60 V d.c. |
|
Max.Charge Current
|
100 A d.c. | |
|
PV INPUT
|
||
|
No. of MPPT Tracker / Strings
|
1 / 1 | |
|
Max.PV Array Power
|
5 kW | 5.5 kW |
|
Max. DC Voltage
|
500 V d.c. | |
|
MPPT Voltage Range
|
60~450 V d.c. | 120~450 V d.c. |
|
Start-up Voltage
|
70 V d.c. | 150 V d.c. |
|
MPPT Maximum Charge Current
|
100 A d.c. | 100 A d.c. |
|
Max.Input Current
|
18 A d.c. | 22 A d.c. |
|
Isc PV (Absolute Maximum)
|
22 A d.c. | 26 A d.c. |
|
PROTECTION & FEATURE
|
||
|
Parallel Function
|
NO | |
|
Protection Degree
|
IP20, Indoor Only | |
|
Protection Degree
|
Overload, Over temperature, Short circuit, etc.
|
|
|
GENERAL PARAMETER
|
||
|
Storage Temperature
|
-15℃~+60℃ (+5℉~+140℉) | |
|
Operating Temperature
|
-10℃~+60℃ (+14℉~+140℉) | |
|
Humidity
|
5%~95% (Non-condensing) | |
|
Operating Altitude (m)
|
4000 m (>2000 m Derating) | |
|
Noise
|
<50 dB | |
|
Warranty
|
2 years | |
|
Machine Dimensions (W*H*D)
|
350 * 440.6 * 124.6 mm (13.78 * 17.35 * 4.91 inch) | |
|
Machine Weight / N.W.
|
13 kg (28.66 lbs) | |
|
DISPLAY & COMMUNICATION
|
||
|
Display
|
LCD Display (Display Running Mode, Loads / Input / Output etc.)
|
|
|
Interface
|
RS485 / CAN / Dry Contact / WiFi (Optional)
|
|
|
||
