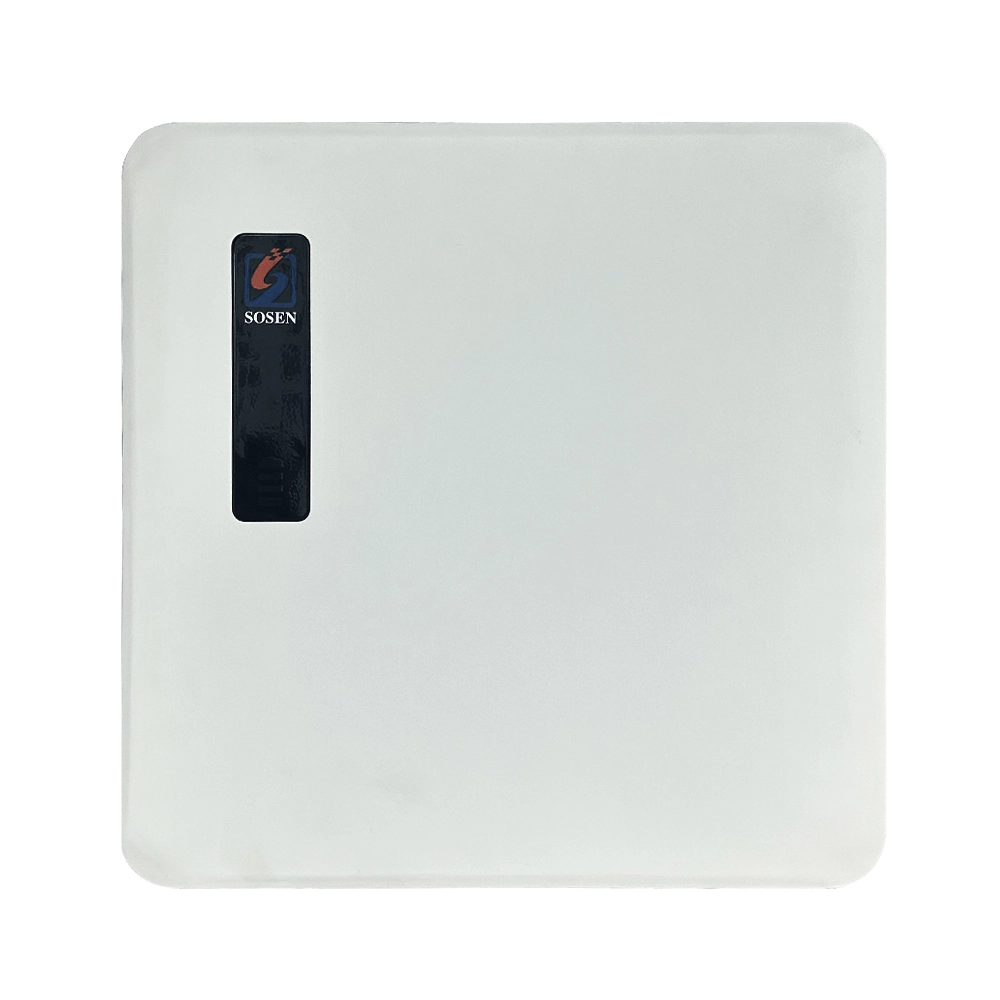

Single Phase High Voltage Hybrid Inverter
EFFICIENCY CURVE
CIRCUIT DIAGRAM
PRODUCT APPLICATION
ELECTRICAL PERFORMANCE SPECIFICATION
|
Parameter |
SSE-HH3K-P1EU |
SSE-3K7-P1EU |
SSE-HH4K6-P1EU |
SSE-HH5K-P1EU |
SSE-HH6K-P1EU |
|
Max.recommended DC Power |
3900W |
4680W |
5980W |
6500W |
7800W |
|
Max.DC Voltage |
600V |
||||
|
Typical DC Operating Voltage |
360V |
||||
|
PV Input Current ( input A/input B) |
A:12.5A/B:12.5A |
||||
|
Max. PV Isc ( input A/input B) |
A:15A/B:15A |
||||
|
MPPT Voltage Range |
80V-550V |
80V-550V |
80V-550V |
80V-550V |
80V-550V |
|
Start-up Voltage |
75V |
75V |
75V |
75V |
75V |
|
No. of MPP Trackers |
2 |
2 |
2 |
2 |
2 |
|
Strings per MPP Tracker |
1 |
1 |
1 |
1 |
1 |
|
DC Disconnection Switch |
Optional |
||||
|
Battery Type |
Li-Ion |
|
Battery Voltage range |
85V-460V |
|
Recommended Battery Voltage |
300V |
|
Max.charge/discharge Power |
6000W |
|
Max.charge Current |
35A |
|
Max.discharge Current |
35A |
|
Communication Iinterfaces |
CAN/ RS485 |
|
Reverse Connect Protection |
YES |
|
Parameter |
SSE-HH3K-P1EU |
SSE-HH3K7-P1EU |
SSE-HH4K6-P1EU |
SSE-HH5K-P1EU |
SSE-HH6K-P1EU |
|
Norminal AC power |
3000VA+4000VA(bypass) |
3680VA+4000VA(bypass) |
4600VA+5000VA(bypass) |
4999VA+5000VA(bypass) |
6000VA+6000VA(bypass) |
|
Max. apparent AC power |
3000/3300+4000(bypass) |
3680/4048+4000(bypass) |
4600+5000(bypass) |
5500+5000(bypass) |
6600+6000(bypass) |
|
Rated Grid Voltage(AC voltage range) |
220V/230V/240V（180V to 270V ） |
||||
|
Rated Grid Frequency |
50Hz/60Hz |
||||
|
Typical AC Current |
13A+17.4A(bypass) |
16A+17.4A(bypass) |
20A+21.7A(bypass) |
21.7A+21.7A(bypass) |
26.1A+26.1A(bypas) |
|
Max. AC Current |
14.4A+21.7A(bypass) |
16A+21.7A(bypass) |
21A+26.0A(bypass) |
21.7A+26.0A(bypass) |
26.1A+26.1A(bypass) |
|
Displacement Power Factor |
0.8 leading to 0.8 lagging |
||||
|
Total Harmonic Distortion(THDi, rated power) |
<3% |
||||
|
Parameter |
SSE-HH3K-P1EU |
SSE-HH3K7-P1EU |
SSE-HH4K6-P1EU |
SSE-HH5K-P1EU |
SSE-HH6K-P1EU |
|
EPS MAX Power |
5000VA |
5000VA |
6000VA |
6000VA |
6600VA |
|
EPS Rated Power |
4000VA |
4000VA |
5000VA |
5000VA |
6000VA |
|
EPS Rated Voltage(AC), Frequency |
230V, 50Hz/60Hz |
||||
|
EPS Rated Current |
17.4A |
17.4A |
21.7A |
21.7A |
26.1A |
|
EPS Peak Power |
7200W(<10s) |
||||
|
Switch Time |
<20ms |
||||
|
Total Harmonic Distortion(THDv, linear Load) |
<2% |
||||
|
Compatible with the Generator |
Optional |
||||
|
Parameter |
SSE-HH3K-P1EU |
SSE-HH3K7-P1EU |
SSE-HH4K6-P1EU |
SSE-HH5K-P1EU |
SSE-HH6K-P1EU |
|
MPPT Efficiency |
99.90% |
99.90% |
99.90% |
99.90% |
99.90% |
|
Euro-efficiency |
97.00% |
97.00% |
97.00% |
97.00% |
97.00% |
|
Max. Efficiency |
97.80% |
97.80% |
97.80% |
97.80% |
97.80% |
|
Max. Battery Charge Efficiency (PV to BAT) (@full load) |
98.50% |
98.50% |
98.50% |
98.50% |
98.50% |
|
Max. Battery Discharge Efficiency (BAT to AC)(@full load) |
97.00% |
97.00% |
97.00% |
97.00% |
97.00% |
|
Parameter |
SSE-HH3K-P1EU |
SSE-HH3K7-P1EU |
SSE-HH4K6-P1EU |
SSE-HH5K-P1EU |
SSE-HH6K-P1EU |
|
Demensions(WxHxD) |
480mmx480mmx178mm |
||||
|
Weight |
20kg |
||||
|
Cooling Mode |
Natural Cooling |
||||
|
Topology |
Transformerless |
||||
|
Communication |
Meter, WIFI(optional), DRM, CT,RS485,CAN |
||||
|
LED Display |
8led |
||||
|
DIMENSION AND WEIGHT |
Standard Warranty Standard 10 Years |
||||
