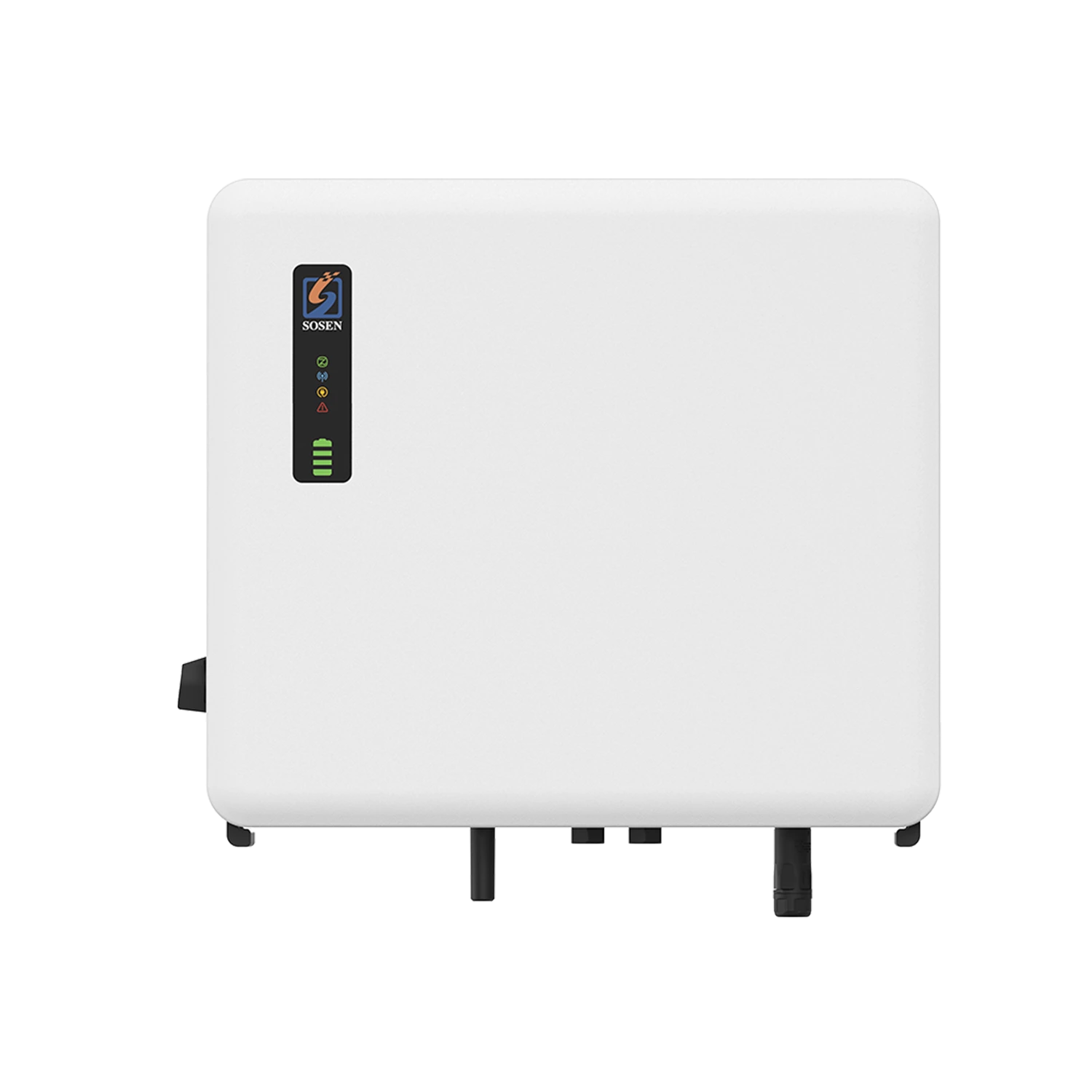

8KW~12KW Three Phase High Voltage Hybrid Inverter

The SSE-HH8K~12K-P3EU is a cutting-edge three phase high voltage energy storage inverter, designed for 8KW-12KW power needs in residential and small commercial settings. It features top-tier components and advanced digital control for stable, efficient, and reliable power, both on-grid and off-grid. Supporting various battery types and communication methods, it offers flexible configuration and remote monitoring to meet diverse power requirements.

• Wide Battery Compatibility: Supports 120-800V, mainstream BMS protocols, customizable for flexible energy solutions.

• Advanced Control Technology: Latest DSP technology for improved MPPT, <3% harmonic current/voltage, reduces grid damage.

• Versatile Operating Modes: Self-use, TOU, backup, generator, and balance modes for diverse energy management.

• High Protection Level: IP65-rated, reliable operation in harsh environments.

• Integrated UPS Function: <10ms off-grid switch time, continuous power to critical loads.



Contact Us

    oops...!

    no product data.

    Go to homepage

    Reliability, Compatibility, Efficiency, Versatility

    SSE-HH8K~12K-P3EU


    8-12kW | Three Phase | High Voltage | IP65

    The SSE-HH8K-12K-P3EU, is a high-efficiency, reliable, and versatile energy storage solution. This advanced three-phase high voltage inverter supports a wide battery voltage range (125-800V) and employs cutting-edge DSP technology to maintain harmonic current/voltage below 3%, ensuring optimal grid stability. Accessible via WiFi and the web, it offers seamless remote monitoring and control. Flexible operating modes adapt to various energy needs, including support for single-phase 100% unbalanced load operation off-grid. Its IP65-rated fanless design ensures durability in harsh environments, while the swift <10ms off-grid switch time guarantees uninterrupted power supply.

    SSE-HH8K-12K-P3EU (2)

    Enhanced Accessibility & Versatility

    Effortlessly access via WiFi and web. Offers diverse modes for varied applications. Features a range of interfaces and a fanless design for safety and durability.

    8KW~12KW Three Phase High Voltage Hybrid Inverter 7
    Easy Access
    Accessible through WiFi and Web.
    8KW~12KW Three Phase High Voltage Hybrid Inverter 8
    Diverse Modes
    Multiple modes for various battery packs, PV panels, and loads.
    8KW~12KW Three Phase High Voltage Hybrid Inverter 9
    Flexibility
    Support single-phase 100% unbalanced load operation under off-grid.
    8KW~12KW Three Phase High Voltage Hybrid Inverter 10
    Safe
    360 degree of security from hardware to software.

    Application Scenario


    SOSEN residential products scenarios3
    SOSEN residential products scenarios2
    SOSEN residential products scenarios1



    Related Parameters


    Model

    SSE-HH8K-P3EU

    SSE-HH12K-P3EU

    INVERTER INPUT/OUTPUT(GRID)

    Rated Power

    8kW

    12kW

    Voltage (Nominal or Range)

    400V a.c /230V a.c., 3W+N+PE

    Frequency(Nominal or Range)

    50Hz / 60Hz

    Power Factor Range

    0.8 leading~ 0.8 lagging

    Wave Form

    Pure Sine Wave

    Switch Time

    <10ms

    Current (Maximum Continuous)

    12.8A a.c.

    19.1A a.c

    Max Output Overcurrent Protection

    400V a.c/60A a.c

    BATTERY

    Battery Type

    Lithium / Lead-acid

    Battery Voltage Range

    125~800V d.c.

    Nominal Battery Voltage

    200~800V d.c

    300~800V d.c

    Max Charge Current

     40A d.c.

    Max Discharge Current

     40A d.c.

    Reverse Connect Protection

     Support

    PV INPUT

     No.of MPPT Tracker/Strings

     2/1+1



     Max PV Array Power

     12kW

    18kW

     Max DC Voltage

     1000V d.c.

    MPPT Voltage Range

    150~950V d.c

    Start-up Voltage

    200V d.c

    Max.Input Current

    16/16A d.c.

    Isc PV (Absolute Maximum)

    24/24A d.c

    AC OUTPUT (EPS)

    EPS Rated Output Voltage

    400V a.c/230V a.c, 3W+N+PE

    EPS Rated Output Frequency

    50Hz / 60Hz

    EPS Rated Output Active Power

    8kW

    12kW

    EPS Rated Output Apparent Power

    8kVA

    12kVA

    EPS Rated Output Current

    11.6A a.c

    17.4A a.c

    EPS Output Power Factor

    0.8 leading~ 0.8 lagging

    Overload Capacity

    110%, 30s/ 120%, 10s/ 150%, 0.2s

    EPS Output Inrush Current

     50A a.c @10ms

    EPS Max Output Fault Current

    50A a.c @10ms

    EFFICIENCY

    MPPT Efficiency

    99.90%

    Euro-efficiency

    97.50%

    Max Efficiency

    98%

    PROTECTION & FEATURE

    Insulation Monitoring

    Yes

    Residual Current Monitoring

    Yes

    Parallel Function

    Yes

    Protection Degree

    IP65

    Certifications

    CEI0-21, EN 50549 -1, VDE -AR-N 4105, UNE 217002, IEC62109-1/2, IEC61000, NTS631

    Other Protection

    Output over-voltage protection, output over current protection, short circuit protection, surge protection, temperature protection, anti-islanding

    GENERAL PARAMETER

    Storage Temperature

    -25°C~60°C

    Operating Temperature

    -25°C ~ 60°C (Linely derating to 60% when exceed 45°C~60°C)

    Humidity

    0~100%(Non-condensing)

    Altitude

    4,000m (>2,000 Derating)

    Noise

    <35dBA

    Dimensions (L*W*H)

    600*210*530mm

    Shipping Dimensions (L*W*H)

    660*250*580mm

    Machine Weight/ N.w.

    35kg

    DISPLAY & COMMUNICATION

    Display

    LED

    Interface

    RS485/WiFi/4G/Bluetooth/CAN/DRM
