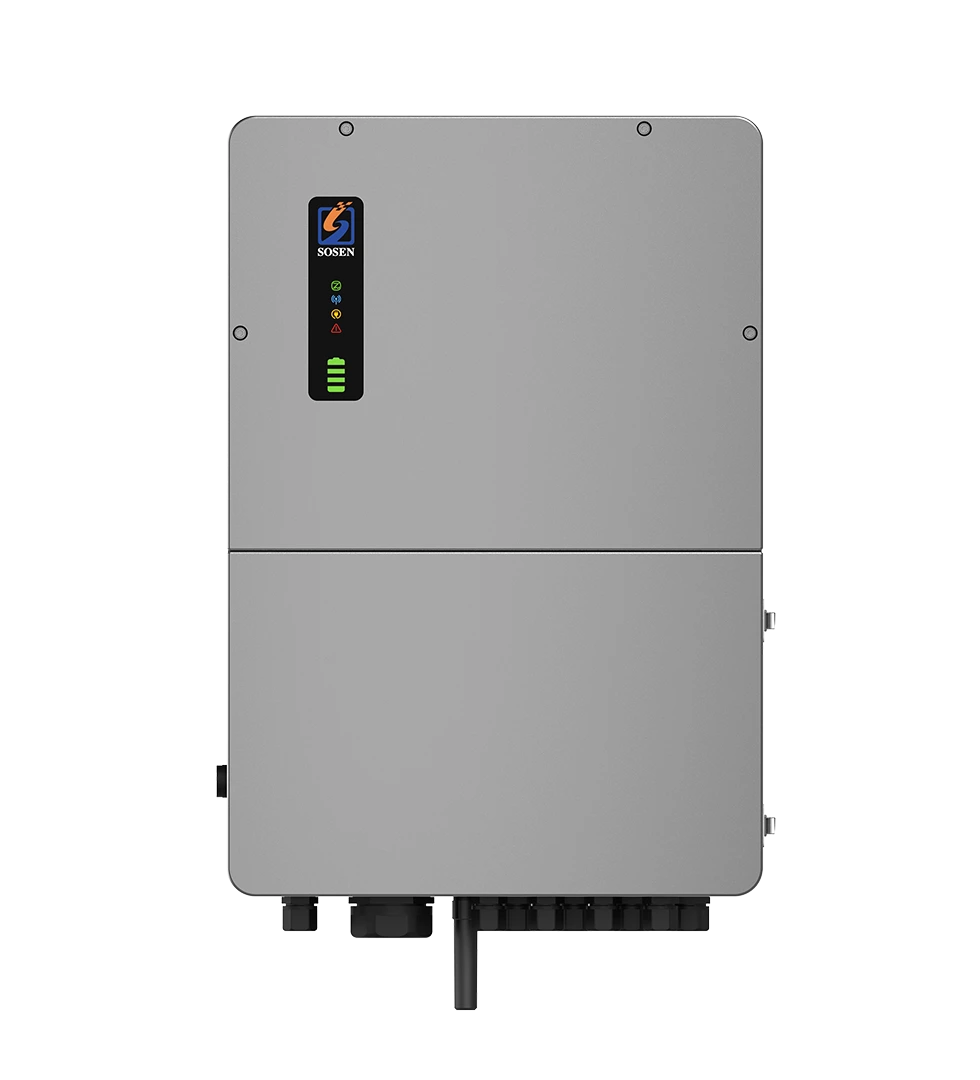

6KW~12KW Single Phase Low Voltage Hybrid Inverter
• High MPPT efficiency up to 99.9% for optimal performance.
• Fast switch time (<10ms) ensures seamless power.
• THDi<3%, THDU<2%.
• Supports 45V-58V lithium and lead-acid batteries.
• IP65 protection degree, easy installation.
Safety, Reliability, Compatibility, Efficiency
SSE-BL6K~12K-P1US
6K-12KW | Single Phase | Low Voltage | IP65
SSE-BL6K~12K-P1US AC coupled storage inverter supports a wide battery voltage range (45-58V) and the switching time is less than 10ms. Advanced digital control technology ensures remote monitoring and optimal energy consumption.
Application Scenario
Related Parameters
|
Model |
SSE-BL6K-P1US |
SSE-BL12K-P1US
|
|
Product Type |
AC Coupled Storage Inverter |
|
|
BATTERY |
||
|
Battery Type |
Lithium / Lead-acid |
|
|
Battery Voltage Range |
45~58V d.c. |
|
|
Max Charging Voltage |
58V d.c. |
|
|
Max Charge/Discharge Current |
100A d.c./110A d.c. |
200A d.c./210A d.c. |
|
Communication Interface |
CAN/RS485 |
|
|
AC OUTPUT |
|
|
|
Rated Output Power |
6000VA |
12000VA |
|
Max Output Current |
27.5A |
55A |
|
Grid Voltage/Range |
120/240V |
|
|
Frequency |
60Hz |
|
|
Power Factor Range |
0.8 leading~0.8 lagging |
|
|
THDi |
<3% |
|
|
AC Output Topology |
L1+L2+N+PE |
|
|
AC OUTPUT(EPS) |
||
|
EPS Rated Power |
6000VA |
12000VA |
|
EPS Rated Output Voltage |
120/240V |
|
|
EPS Rated Output Current |
27.5A |
55A |
|
Rated Frequency |
60Hz |
|
|
Switching Time |
<10ms |
|
|
THDU |
<2% |
|
|
Overload Capacity |
110%, 30s/120%, 10s/150%, 0.02s |
|
|
GENERAL PARAMETER |
||
|
Max Efficiency |
97% |
|
|
MPPT Efficiency |
99.90% |
|
|
Humidity |
0~100%(no-condensing) |
|
|
Ingress Protection |
IP65 |
|
|
Noise |
<35dB |
|
|
Operation Temperature |
-25℃~60℃ |
|
|
Cooling |
Natural |
|
|
Relative Humidity |
0~95%(non-condensing) |
|
|
Altitude |
2000m(>2000 Derating) |
|
|
Isolation Transformer |
No |
|
|
Self-consumption |
<5000W |
|
|
DISPLAY& COMMUNICATION |
|
|
|
Display |
LED |
|
|
Interface |
RS485/WiFi/4G/Bluetooth/CAN/DRM |
|
