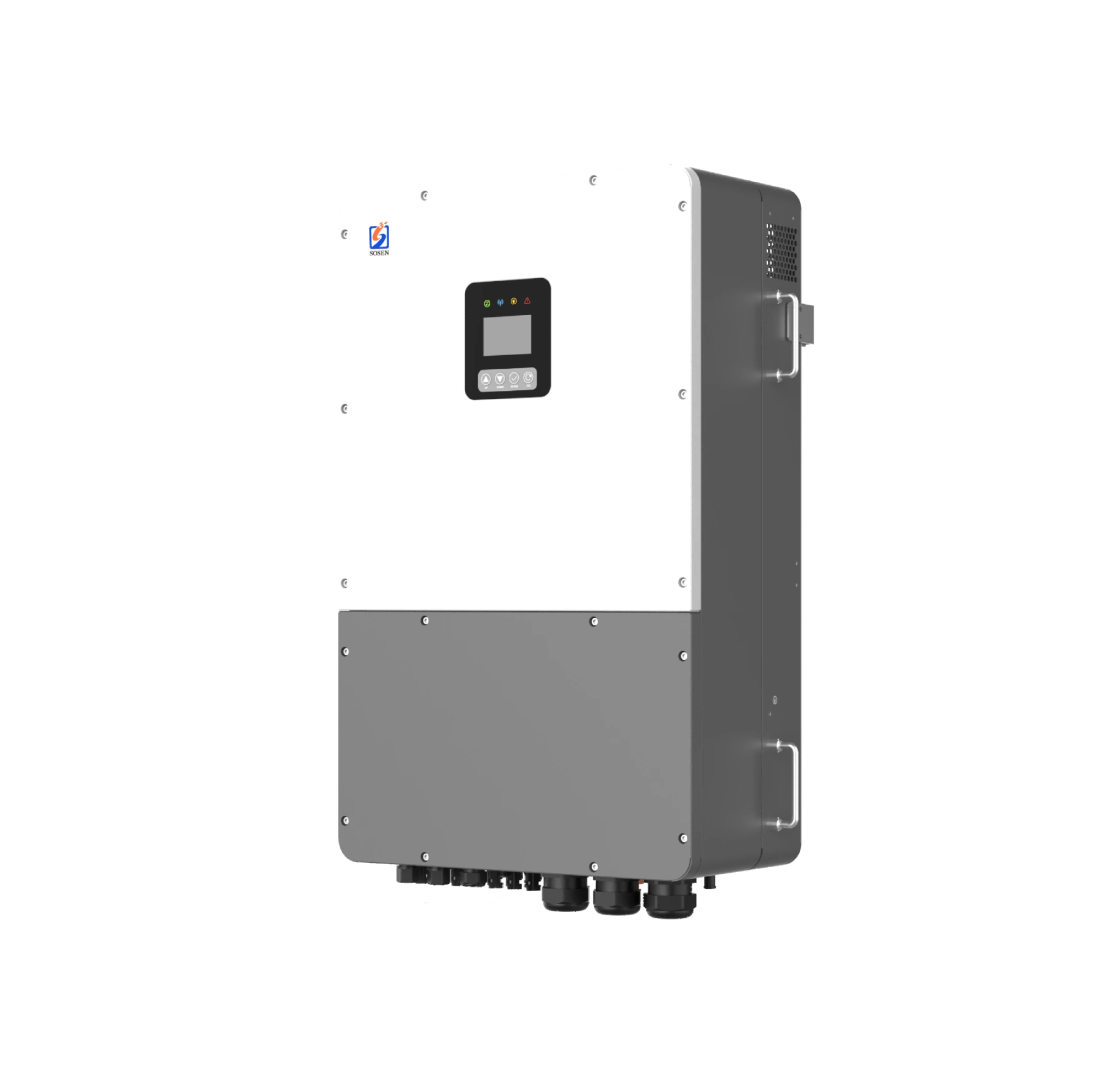

30kW Three-Phase High Voltage Hybrid Inverter
Support LED or LCD.
Three-phase | HV Battery Suppoerted | For LATAM
SSE-HH30K-P3SA
Maximum Energy Harvest, Minimum Waste
· True 100% three-phase balance — no wasted capacity
· 4 MPPTs with up to 97% Euo-efficiency
· 1.67x PV oversizing for greater energy yield
Dual AC Input for Grid & Generator, Seamlessly
· Compatible with both utility grid and diesel generator
· Automatic seamless switching — zero interruption
· Reliable output even in weak or unstable grids
Handle Twice the Load When It Matters Most
· Bypass capacity up to 60 kW — 2x the rated power
· Effortlessly absorbs high-inrush motor and AC loads
· Stays stable under peak demand surges
Safety, Reliability, Efficiency, Compatibility
SSE-HH30K-P3SA
Plug Right Into LATAM Grids — No Transformer Needed
· Purpose-built for Latin American and Caribbean split-phase grids
· Eliminates external transformers — saving cost and space
· Fully compliant with local standards, out of the box
Dual High-Current Ports, Ready for Large-Scale Storage
· 2 independent HV battery inputs for flexible system design
· 100A charge/discharge per port for fast, high-power cycling
· Ideal for large LFP battery banks and commercial storage
Industrial-Grade Tough, Surprisingly Easy to Install
· All-SiC tech delivers higher efficiency and reliability
· IP66-rated enclosure withstands dust, rain, and harsh climates
· Compact plug-and-play design — fast deployment, low maintenance
Related Parameters
|
TECHNICAL SPECIFICATION
|
|
| Model |
SSE-HH30K-P3SA / SSE-HH30K-P3SA-S
|
|
INVERTER INPUT / OUTPUT (GRID)
|
|
|
Rated Power (Input/Output)
|
60 kW / 30 kW |
|
Rated Voltage
|
127 V a.c. / 220 V a.c., 3W+N+PE
|
|
Rated Frequency
|
50 Hz / 60 Hz |
|
Power Factor Range
|
0.8 leading~0.8 lagging
|
|
Switch Time
|
<20 ms
|
|
Max. Continuous Current (Input/Output)
|
157.4 A a.c. / 78.7 A a.c. |
|
Max. Output Overcurrent Protection
|
118.1 A a.c. |
|
BATTERY
|
|
|
Battery Type
|
Lithium / Lead-acid
|
|
Battery Voltage Range
|
150~700 V d.c. |
|
Rated Battery Voltage
|
150 V d.c. |
|
Max. Charge Current
|
2*100 A d.c. |
|
Max. Discharge Current
|
2*100 A d.c. |
|
Reverse Connect Protection
|
Yes |
|
PV INPUT
|
|
|
No. of MPPT Tracker / Strings
|
4 / 2+2+2+2 |
|
Max. PV Input Power
|
60 kW |
|
Max. DC Voltage
|
1000 V d.c. |
|
MPPT Voltage Range
|
150~950 V d.c. |
|
Start-up Voltage
|
200 V d.c. |
|
Max. Input Current / string
|
8*20 A d.c. |
|
Isc PV (Absolute Maximum) / string
|
8*30 A d.c. |
|
AC OUTPUT(EPS) / GENERATOR
|
|
|
EPS Rated Output Voltage
|
127 V a.c. / 220 V a.c., 3W+N+PE |
|
EPS Rated Output Frequency
|
50 Hz / 60 Hz |
|
EPS Rated Output Active Power
|
30 kW |
|
EPS Rated Output Apparent Power
|
30 kVA |
|
EPS Rated Output Current
|
78.7 A a.c. |
|
Overload Capacity (Off Grid)
|
110% 30s, 120% 10s, 150% 0.2s |
|
EFFICIENCY
|
|
| MPPT Efficiency | 99.90% |
|
Euro-efficiency
|
97.00% |
|
Max. Efficiency
|
98.00% |
|
PROTECTION & FEATURE
|
|
|
Insulation Monitoring
|
Yes |
|
Residual Current Monitoring
|
Yes |
|
Parallel Function
|
Yes, up to 8 pcs |
|
Protection Degree
|
IP66 |
|
Certifications
|
UL1741, FCC Part 15B, UL1547, UL1998, UL1699B, HECO SRD 2.0, CEC efficiency
|
|
Other Protection
|
Ground fault current monitoring, Earth fault detection,
Residual current detection (RCD), etc.
|
|
GENERAL PARAMETER
|
|
|
Storage Temperature
|
-25℃~+60 ℃ |
|
Operating Temperature
|
-25℃~+60 ℃ (>+45℃ Derating) |
|
Humidity
|
0%~95% (Non-condensing)
|
|
Max. operating altitude
|
4000 m (>2000 m Derating)
|
|
Noise
|
<65 dB |
|
Warranty
|
5 years |
|
Machine Dimensions (W*H*D)
|
544*880*278 mm |
|
Machine Weight / N.W.
|
88 kg |
|
DISPLAY & COMMUNICATION
|
|
|
Display
|
App+ LED / LCD (-S version)
|
|
Interface
|
RS485 / WiFi / CAN / DRM / Bluetooth (Optional: LAN / Meter)
|
|
|
