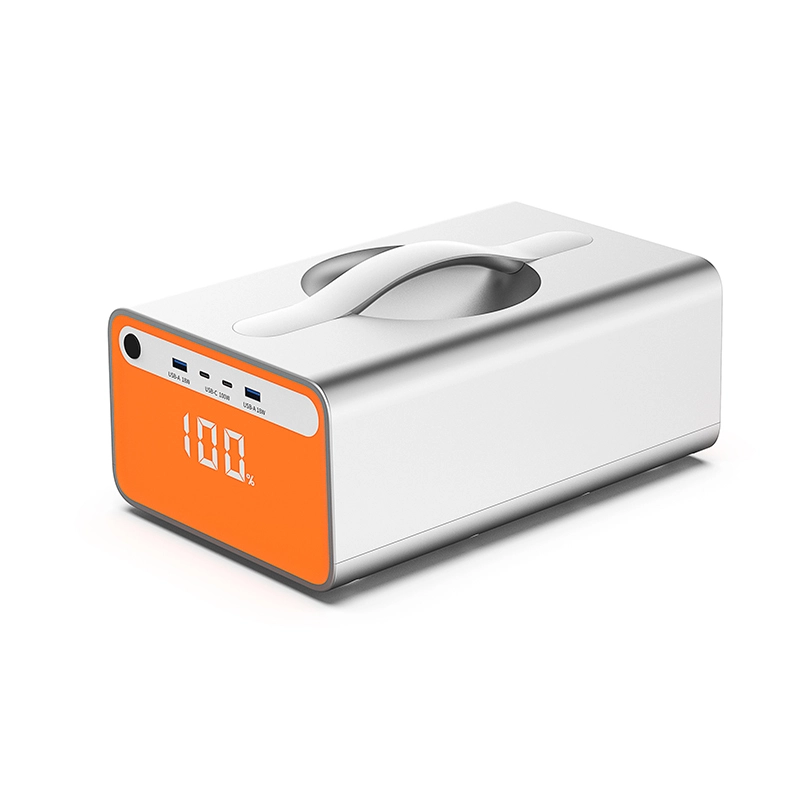

PE-2400 Portable Power Station
RELATED PARAMETERS
|
Model |
PE-2400 |
||
|
Capacity |
1008Wh(14S5P) |
Battery Cell |
LFP(LiFePo4) |
|
Monitor |
LED |
Housing Material |
PC+ABS |
|
Color |
Grayish blue |
Stand-by Power |
>2W |
|
AC Output Voltage |
120V/50/60Hz x 4, |
||
|
Rated AC Output |
2400W |
Peak AC Output |
3600W |
|
AC Output Efficient |
89%-90% |
||
|
USB-A Output |
5V⎓ 2.1A |9V⎓ 2A |12V⎓ 1.5A , 18W Max (fast charging) |
||
|
USB-C Output |
5/9/12/15V⎓ 3A | 20V⎓ 5A , (100W Max) |
||
|
VE30 |
DC 36.1-50.4V ( 2880W Max) |
||
|
VE24 |
DC 36.1-50.4V (860W Max ) |
||
|
AC adapter |
800W |
||
|
VE24 |
DC 50.4V ( 860W Max) |
|
VE30 |
DC 50.4V ( 860W Max) |
|
Solar /Car |
12V/18V/24V/36V, MPPT (160W Max ) / Solar hub: 860W (Optional) |
|
Over voltage/Over current/Over charge/Over discharge/Overload/Short circuit /High temperature/Low temperature |
|
Dimension (L × W × H) |
310 x 140 x 200 mm (14.17x7.32x8.89 inch) |
|||
|
Gross Weight/Net Weight |
Inverter : 4kg | Power Brick 9.65kg / Inverter :5.3kg | Power Brick 9.35kg |
|||
|
Charging Temperature |
0℃- +45℃ |
Discharging Temperature |
-20℃- +45℃ |
|
|
Storage Temperature |
-20℃- +60℃ |
Storage Humidity |
5-95% |
|
|
Extent Battery and Quantity |
Infinite |
|||
|
Accessories (Optional) |
Power Brick Hub |
Solar Panel Hub |
Power Adapter |
VE30 Cable |
|
Dimension (L × W × H) |
200*81*80mm |
168*90*45mm |
185*91*65mm |
330/440/570mm(L) |
|
Net Weight |
0.74kg |
0.9kg |
1.5kg |
0.18/0.21/0.26kg |
|
VE30 Port |
Input×5 |
/ |
/ |
2 |
|
VE24 Port |
Input×1 |
Input×1 |
Input×1 |
/ |
|
DC5521 |
/ |
Input×6 |
/ |
/ |
|
Rated DC Power Output |
2880W |
960W |
800W |
/ |
PRODUCT FEATURES
● EV-Class battery cells.
● Long cycle life 2500 times.
● Bidirectional inverter technology charging 80% < 1 h ECO mode (control in APP).
● 8 safety BMS protections modes 4 recharging ways.
● 4 output modes.
● 10 output ports.
● 1000W High power output.
● Battery capacity expansion technology Ergonomically designed, easy to carry Pure sine wave, appliances friendly.
● 24 months guaranty.
