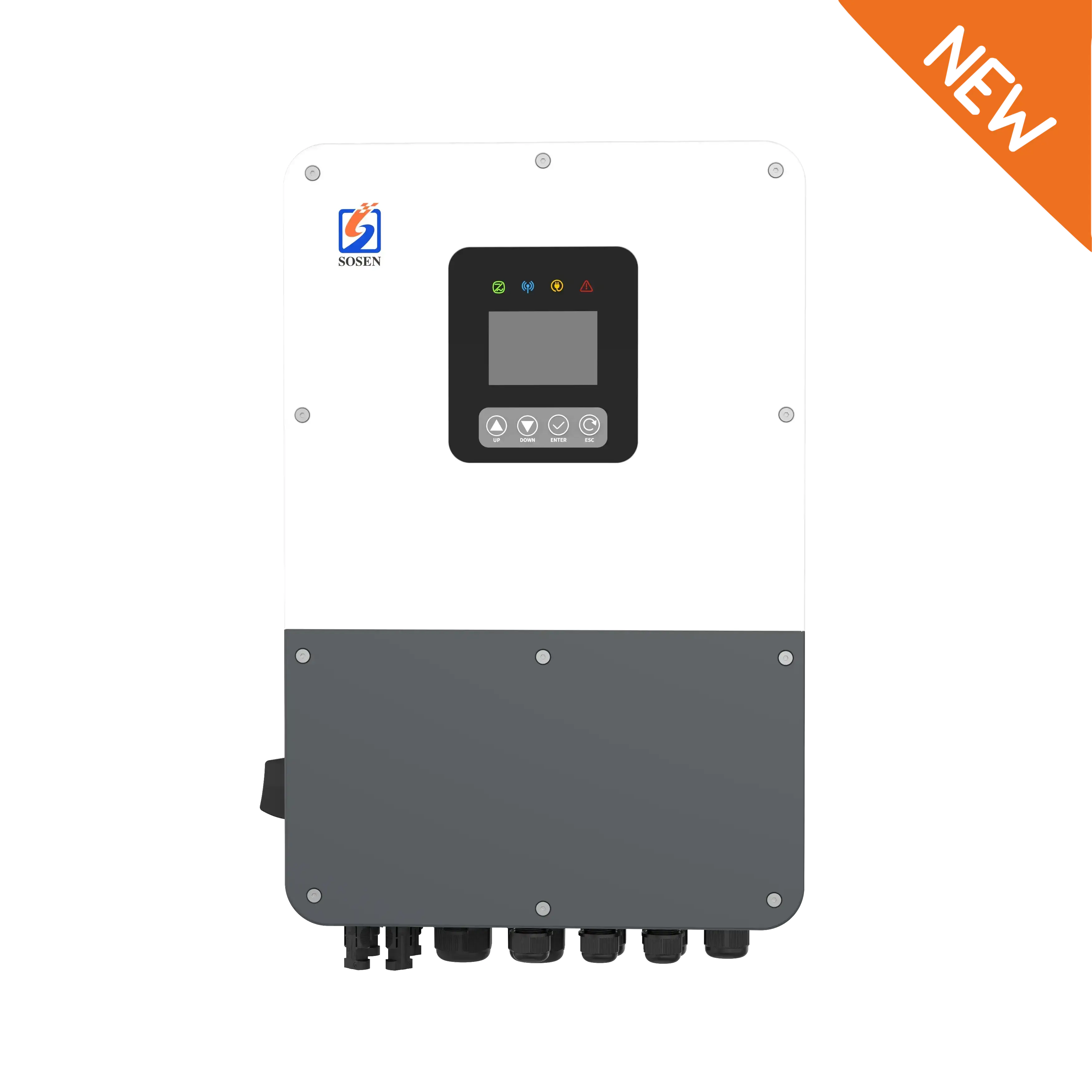

SOSEN 10-16kW single phase low voltage hybrid inverter front view with LCD display

Bottom view of SOSEN 10-16kW hybrid inverter showing dual mppts and battery & COM ports

6kW-10kW Single Phase Low Voltage Hybrid Inverter 4

6kW-10kW Single Phase Low Voltage Hybrid Inverter

The SSE-HL6~10K-P1EU-SC low-voltage single-phase hybrid inverter provides residential users with a cost-effective and reliable energy solution. It features high charge and discharge currents, operates efficiently across a wide temperature range, and includes multiple protection functions to ensure stable, long-term performance.

1.5× PV Oversizing, Supports Battery Charging at Full Load
Dual MPPTs with 4 PV Strings, Up to 550V per String
<10 ms On-grid/Off-grid Switching for Backup Power
Max. 200A Charge/Discharge for High-capacity Battery Cells
150% Peak Load Capability for Demanding Applications
IP65-rated & LCD screen, Supports Real-time Monitoring via App

Contact Us

Inquiry

download

SSE-HL6~10K-P1EU-SC

Write a Review

Smarter Power. Stronger Backup.

6kW-10kW Single Phase Low Voltage Hybrid Inverter 5

Bigger Harvest

1.5× PV Oversizing, Supports
Battery Charging at Full Load

6kW-10kW Single Phase Low Voltage Hybrid Inverter 6

Flexible Design

Dual MPPTs with 4 PV Strings,
Up to 550V per String

6kW-10kW Single Phase Low Voltage Hybrid Inverter 7

Seamless Backup

<10 ms On-grid/Off-grid Switching
for Backup Power

6kW-10kW Single Phase Low Voltage Hybrid Inverter 8

Fast Charging

Max. 200A Charge/Discharge
for High-capacity Battery Cells

6kW-10kW Single Phase Low Voltage Hybrid Inverter 9

Surge Ready

150% Peak Load Capability
for Demanding Applications

6kW-10kW Single Phase Low Voltage Hybrid Inverter 10

Smart Monitoring

IP65-rated LCD, Supports
Real-time Monitoring via App

Smart 10-16kW Hybrid Inverter for Every Home

Made Reliable, Built for Value

The power cuts out without warning. Your fridge stops, the router blinks off. This inverter switches to backup in under 10 milliseconds and absorbs load spikes up to 150 percent, so the outage never really happens. Life just continues.

Add an EV charger or heat pump later, and most systems fall short. With 1.5 times PV oversizing and dual MPPTs across four strings, this inverter keeps up as your home grows, so today's choice still makes sense years from now.

High-capacity batteries need an inverter that can actually keep up. With up to 200A charge and discharge capability, the SSE-HL6~10K-P1EU-SC gets your battery bank fully charged faster and delivers full power exactly when you need it.

years warranty

200A

Battery charge/discharge current

Home energy storage system using SOSEN 10-16kW hybrid inverter with multi-protection and flexible parallel connection

Related Parameters

TECHNICAL SPECIFICATION
Model	SSE-HL6K-P1EU-SC	SSE-HL8K-P1EU-SC	SSE-HL10K-P1EU-SC
NVERTER INPUT/OUTPUT (GRID)
Rated Power	6 kW	8 kW	10 kW
Rated Voltage	220 / 230 / 240 V a.c., L+N+PE
Rated Frequency	50 Hz / 60 Hz
Power Factor Range	0.8 leading / 0.8 lagging
Switch Time	<10 ms
Current (Maximum Continuous)	26.1 A a.c.	34.8 A a.c.	43.5 A a.c.
Max Output Overcurrent Protection	250 V a.c. / 100 A a.c.
BATTERY
Battery Type	Lithium / Lead-acid
Battery Voltage Range	45 ~ 58 V d.c.
Rated Battery Voltag	51.2 V d.c.
Max. Charge Current	135 A d.c.	180 A d.c.	200 A d.c.
Max. Discharge Current	135 A d.c.	180 A d.c.	200 A d.c.
Reverse Connect Protection	Yes
PV INPUT
No. of MPPT Tracker / Strings	2 / 2+2
Max. PV Array Power	9 kW	12 kW	15 kW
Max. DC Voltage	550 V d.c.
MPPT Voltage Range	120 ~ 500 V d.c.
Start-up Voltage	120 V d.c.
Max. Input Current	26 / 26 A d.c.
Isc PV (Absolute Maximum)	34 / 34 A d.c.
AC OUTPUT (EPS) / GENERATOR
EPS Rated Output Voltage	220 / 230 / 240 V a.c., L+N+PE
EPS Rated Output Frequency	50 Hz / 60 Hz
EPS Rated Output Active Power	6 kW	8 kW	10 kW
EPS Rated Output Apparent Power	6 kVA	8 kVA	10 kVA
EPS Rated Output Current	21.6 A d.c.	34.8 A d.c.	43.5 A d.c.
Overload Capacity (Off Grid)	110%, 600s / 120%, 10s / 150%, 0.02s
EFFICIENCY
MPPT Efficiency	99.20%
Euro-efficiency	96.50%
Max. Efficiency	97.00%
PROTECTION & FEATURE
Insulation Monitoring	Yes
Residual Current Monitoring	Yes
Parallel Function	Yes
Protection Degree	IP65
Other Protection	Over voltage, Over current, Over temperature, Short circuit, Active anti-islanding etc.
GENERAL PARAMETER
Storage Temperature	-25°C~ +60°C
Operating Temperature	-25°C ~ +60°C (Linely derating to 10% when exceed +45°C ~ +60°C)
Humidity	0-95% (Non-condensing)
Altitude	2000 m (>2,000 m Derating)
Noise	<60 dB
Warranty	5 year
Machine Dimension(WHD)	361 * 545 * 222 mm
Machine Weight / N.W.	25 kg
DISPALY & COMMUNICATION
Display	LCD + APP
Interface	RS485 / CAN / WiFi / Bluetooth
The AC voltage and frequency range can differ according to the grid standards of each country. Please note that all specifications are subject to change without prior notice.
