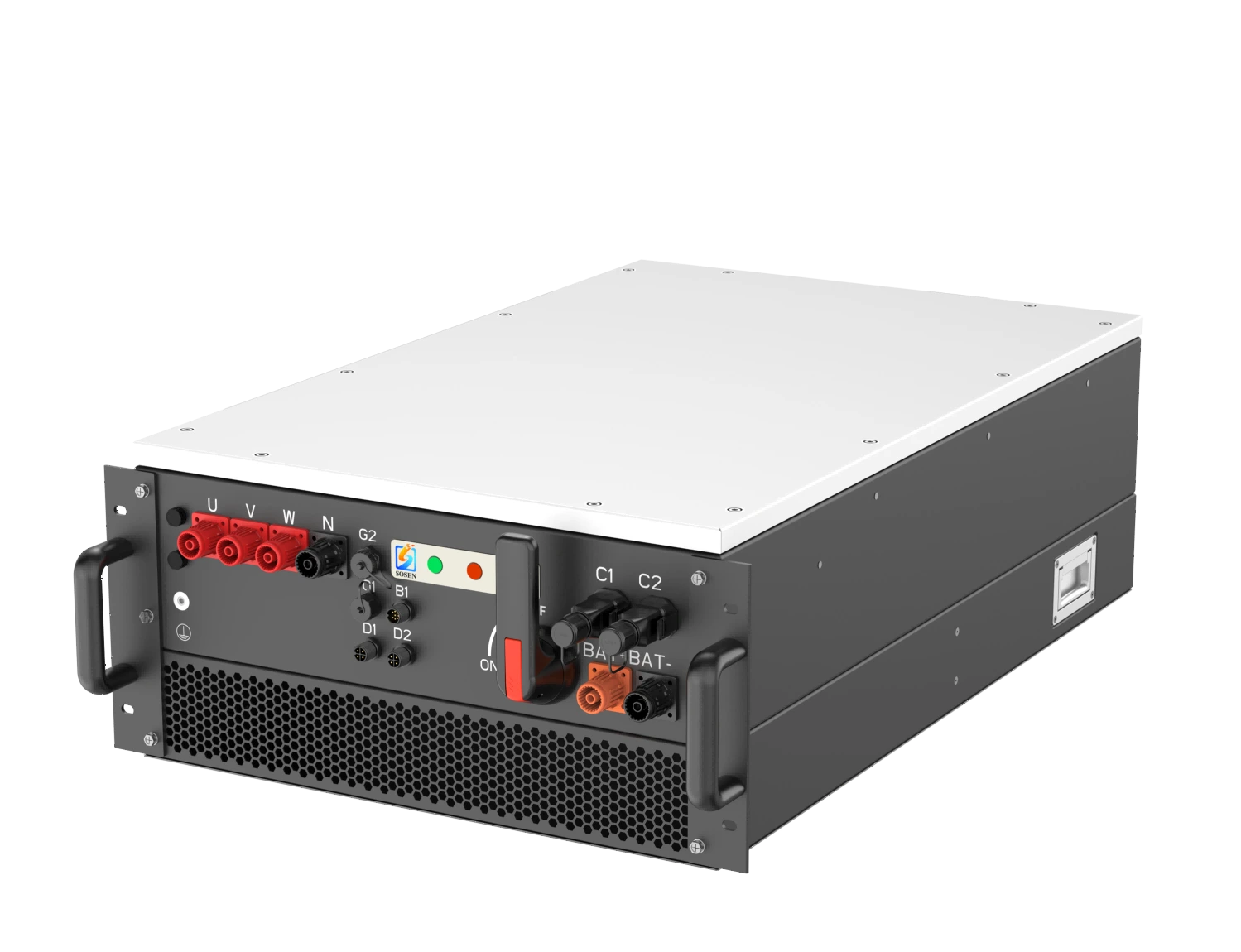

200kW~235kW Three-Phase High Voltage Power Conversion System(PCS)
• Higher Security Level: Fuses and high-voltage DC relays bring high DC-breaking capabilities.
• Extend Lifespan: Use high-voltage electrolytic capacitors and film capacitors.
• Configure power frequency inductors to meet the parallel connection of multiple machines and suppress grid resonance.
• Quick AC Leakage Current Detection: Use a fluxgate leakage current sensor for quicker protection.
Safety, Reliability, Compatibility, Efficiency
SSE-HH200K~235K-P3EU
200K~235KW | Three Phase | High Voltage | IP66
The SSE-HH200K~235K-P3EU power conversion system(PCS) supports constant power, constant current, and constant voltage control. It also featutes LVRT&HVRT, black-start function. The battery voltage ranges from 1000V to 1500V. The IP66 protection degree and anti-islanding protection for next level of safety. It also enjoys bidirectional energy conversion with max efficiency up to 99%.
Enhanced Accessibility & Versatility
Effortlessly access via WiFi and web. Offers diverse modes for varied applications. Features a range of interfaces and a fanless design for safety and durability.
Application Scenario
Related Parameters
| TECHNICAL SPECIFICATION | |||
| Model | SSE-HH200K-P3EU | SSE-HH215K-P3EU | SSE-HH235K-P3EU |
| Product Type | Power Conversion System (PCS) | ||
| AC (ON-GRID) | |||
| Rated Power | 200 kW | 215 kW | 235 kW |
| Rated Voltage | 400 / 690 V a.c., 3W+PE | ||
| Rated Frequency | 50 Hz / 60 Hz | ||
| Power Factor Range | 1.0 leading~ 1.0 lagging | ||
| Max. Apparent Output Power | 220 kVA | 236.5 kVA | 258.5 kVA |
| AC Output Rated Current | 167.3 A a.c. | 180.0 A a.c. | 196.6 A a.c. |
| Max. Output Current | 184.0 A a.c. | 197.9 A a.c. | 216.3 A a.c. |
| THDi | <3% | ||
| DC(BATTERY) | |||
| Battery Type | Lithium / Lead-acid | ||
| Battery Voltage Range | 1000 ~ 1500 V d.c. | ||
| Max. Charging / Discharging Power | 220 kW | 236.5 kW | 258.5 kW |
| Max. Charging / Discharging Current | 204 A d.c. | 220 A d.c. | 240 A d.c. |
| GENERAL PARAMETER | |||
| Cooling | Intelligent air cooling | ||
| Relative Humidity | 0 ~ 95% (Non-condensing) | ||
| Operating Altitude | 4,000 m (>2,000 m, Derating) | ||
| Ingress Protection | IP66 | ||
| Ambient Temperature | -35℃~ 55℃ (>45℃, Derating) | ||
| Protective Class | I | ||
| Over Voltage Category | III(AC), II(DC) | ||
| Inverter Topology | Non-isolated | ||
| Dimensions(W*H*D) | 600*900*300mm | ||
| Machine Weight/ N.W. | 100 kg | ||
| DISPLAY AND COMMUNICATION | |||
| Communication Interface | RS485 / Ethernet / CAN (Optional) | ||
