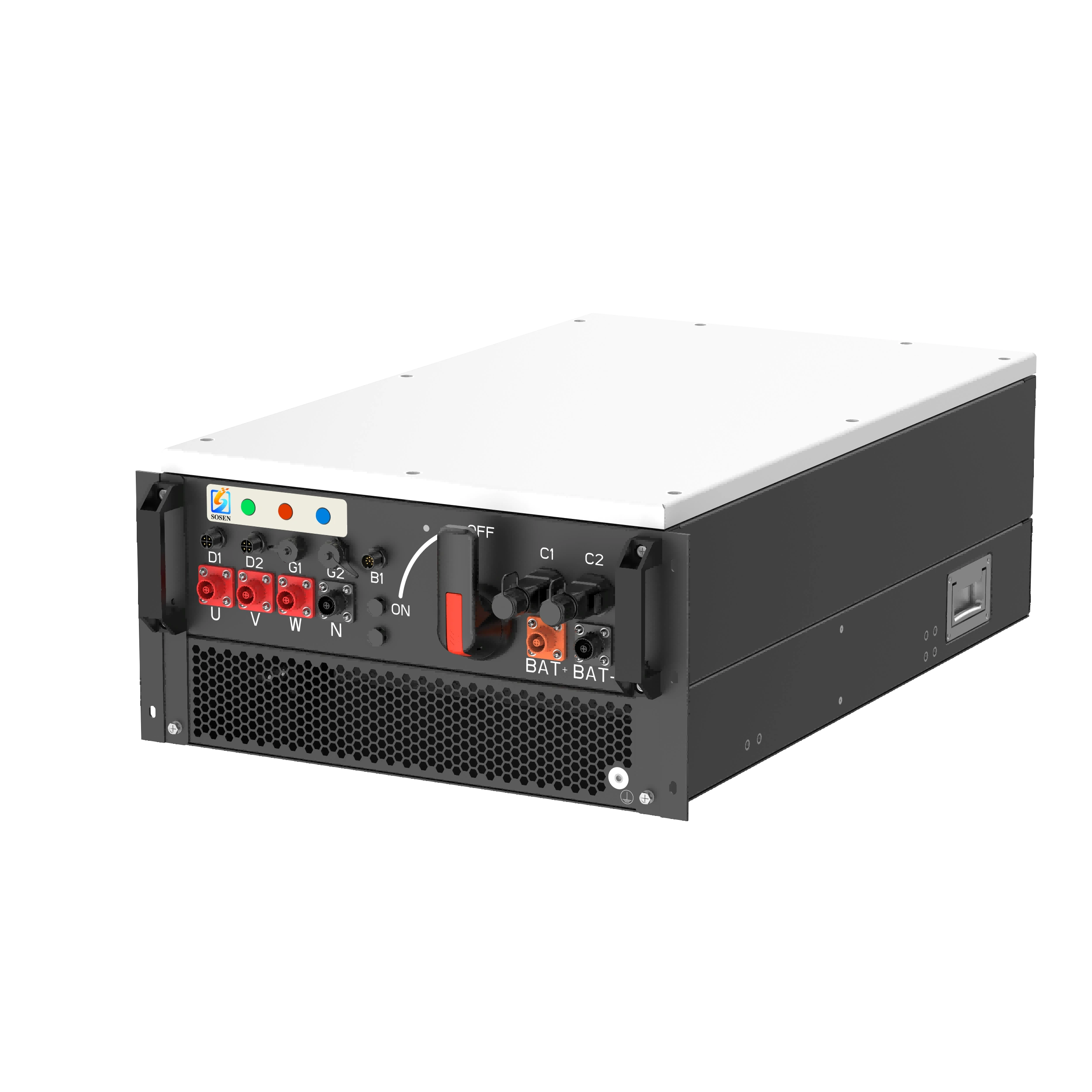

100kW~125kW Three-Phase High Voltage Hybrid Inverter
• Advanced Safety with Multi-Level Protection: High-voltage DC relays and fuses ensure superior safety and protection.
• Extended Lifespan: High-voltage capacitors ensure stability and durability.
• Broad Grid Compatibility: Works with 580V~1000V d.c, three-phase systems.
• Flexible & Compliant: Configurable relay meets international standards.
• Reliable Grid Disconnect: Dual AC relays ensure safe disconnection.
• Scalable & Quick Install: Modular design for easy expansion and setup.
• Smart Management: Integrates with diverse energy sources.
Reliability, Safety, Flexibility, Capacity
SSE-HH100K~125K-P3EU
100~125kW | Three Phase | High Voltage | IP66
It prioritizes safety with high voltage DC relays and fuse systems. Versatile installation options and advanced capacitor technology ensure longevity and flexibility. Compliant with international standards and featuring rapid AC leakage detection. It seamlessly transitions between modes and supports off-grid functionality and unbalanced loads, making it essential for energy storage solutions.
Enhanced Accessibility & Versatility
Effortlessly access via WiFi and web. Offers diverse modes for varied applications. Features a range of interfaces and a fanless design for safety and durability.
Application Scenario
Related Parameters
| TECHNICAL SPECIFICATION | ||
| Model | SSE-HH100K-P3EU | SSE-HH125K-P3EU |
| Product Type | Power Conversion System (PCS) | |
| AC(ON-GRID) | ||
| Rated Power | 100 kW | 125 kW |
| Voltage (Nominal or Range) | 380 / 400 V a.c., 3W+N+PE | |
| Frequency (Nominal or Range) | 50 Hz / 60 Hz | |
| Power Factor Range | 1.0 leading ~ 1.0 lagging | |
| Overload Capacity | 110% long-term | |
| Max. Apparent Output Power | 110 kVA | 137.5 kVA |
| AC Output Rated Current | 144A a.c. | 181A a.c. |
| Max. Output Current | 159A a.c. | 200A a.c. |
| THDi | <3% | |
| AC(OFF-GRID) | ||
| Rated Output Voltage | 380 / 400 V a.c., 3W+N+PE | |
| Rated Output Frequency | 50 Hz / 60 Hz | |
| Max. Apparent Output Power | 110 kVA | 137.5 kVA |
| THDU | <2% (Linear Load) | |
| DC (BATTERY) | ||
| Battery Type | Lithium / Lead-acid | |
| Battery Voltage Range | 580 ~ 1000V d.c. | |
| Max. Charging / Discharging Power | 110 kW | 137.5 kW |
| Max. Charging / Discharging Current | 159 A d.c. | 200 A d.c. |
| GENERAL PARAMETER | ||
| Cooling | Intelligent air cooling | |
| Relative Humidity | 0-95% (Non-condensing) | |
| Operating Altitude | 4,000 m (>3,000 m, Derating) | |
| Ingress Protection | IP66 | |
| Ambient Temperature | -35°C ~ +55°C(>+45°C, Derating) | |
| Protective Class | I | |
| Over Voltage Category | II(AC), II(DC) | |
| Inverter Topology | Non-isolated | |
| Dimensions (W*H*D) | 850*520*280 mm | |
| Machine Weight / N.W. | 85 kg | |
| Machine Weight / N.W. | 85 kg | |
| DISPLAY AND COMMUNICATION | ||
| Communication Interface | RS485 / CAN / Ethernet (Optional) | |
